#1 stuey650

stuey650
  • Gender:Male
  • Location:Aberdeen, Scotland
  • Drives:Porsche 944 - Weekend Toy, Octavia - Daily Runner, Capri - Long term Project

Posted 12 July 2012 - 04:20 PM

Right, as per request in the show us your car history section here is my Capri build thus far. I've just taken the text from another forum so some references to people and locations won' necessarily make sense but you will get the jist, and this if a few updates condences into one.

A wee xmas present to myself. Granted its missing a couple of key parts, doors, engine, suspension, wheels, interior to name a few but seems a decent shell. Has abit of rear end damage, i thought it was just the rear panel although closer inspection the boot floor has a wee crease in it aswell, hopefully it will straighted out though.

Thanks to those who helped getting it into the shed ;D

Posted Image

Posted Image

Posted Image

So, time for an update, not done a huge amount on the car itself, but have been spedning plenty of cash on parts for it. First up, with Project Caroline, project teabag it needs a name, so since its starting as a shell it seem only appropriate to name her Shelly!

My main priority whilst its at the lockup is to get it mobile so that when its time to take her out it can be wheeled out. That meant I needed an axle, I wanted an LSD one but with it being xmas and the list of other parts I need money was tight so the only solution was to steal one...

First I thought about this one.

Posted Image

However with Dad due back from Golf in around an hour there was no time to steal his LSD and replace with an standard one, so that left me with the other choice, steal the one of my white car.

Posted Image

By the time Dad was home from his golf it was more or less ready to come out. With the two of us now on the job it wasn't long before the old one was out and the one I had bought from the club was refitted. I then went on a night out and he finished the brakes off ;D

A clean with a wire brush on the drill and a paint of hamerite and she's looking much better.

Posted Image
Posted Image

I got a job lot of parts from a chap in Invergordon, including front struts. For some reason they were painted green so again, the wirebrush and some hamerite and they're looking closer to the proper colour. Also drilled out the caliper mounting holes to take a bracket for the caprisport 280 conversion. This uses mondeo calipers and sierra cossie discs.

Posted Image
Posted Image

I've bought some adjustable spax inserts for these and 190lb springs, hopefully that will be enough to stop the usual capri nose dive under braking.

As well as a job lot of parts from the chap in Invergordon I've got some parts from Fred. Cross member and antiroll bar which I've had powercoated.

Posted Image

Single leaf springs, shakles and bolts.
Posted Image

The gear box is from a sierra twin cam, 1 half of the hybrid box required for the cossie 24v conversion. I aquired the radiator but unfortunatly it looks like it will be to deep.

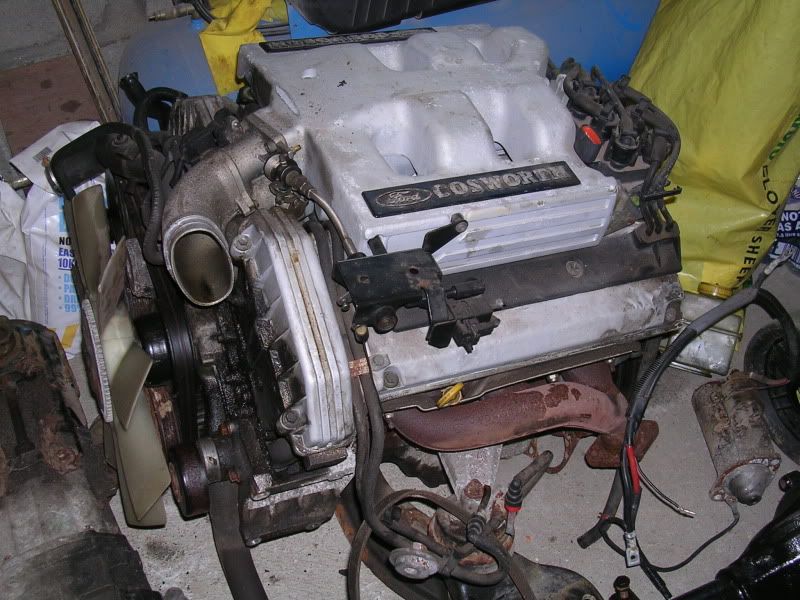

This weekend we picked up my engine(s). I'd originally looked at an entire car in buckie, but the woman wouldn't budge on price, then these 2 came up as a job lot so I jumped at the chance. In typical style after I'd done the deal the woman with the Granada then text to say I could get the car for my offer, it had taken her 4 weeks. Her loss as these were cheaper/less miles and alot less work as they were already removed.

Posted Image
This seems the cleaner of the two so is the one I'm planning to use.
Posted Image
And the other, will keep until the car is up and running just incase its needed for any reason, then either punt it on, keep as a spare or perhaps it might land in another capri...

Next up, the 4x4 gearbox, the other half of the hybrid box, also part of the deal with the engines.

Posted Image

With more parts than room to keep them I headed up to the lockup to make a start on the shell, i mean shelly.

As I said I want to get it mobile but there's no point sticking in the suspension to have to remove again to sort the inner wings. The top plates were bubbling so time to take them off and see whats underneath, or whats missing from underneath.

Starting with the drivers side which look slightly worse.
Posted Image

The results, not as bad as I'd feared.
Posted Image

Ran out of time so never got started on the other side to see what like it is, a job for this week.

right, thought it was about time for an update, just incase anyone was thinking I've got all lazy on this. Progress has been slower than I'd hoped mainly with work but still been doing the odd bit when I've had time.

Seems like a while ago now but the other top plate is removed, not to bad either, I've cut out the section since the photo's were taken but still need to weld in plates.

Posted Image

Next to get my attention was a pair of rear calipers, thrown in as part of the engine/gearbox deal. These were completely siezed and I wasn't really sure if they were salvageable. I looked into getting exchange calipers from a few companies but at £150+ decided to have a go myself.

Posted Image
Posted Image
After dismantling them i bought a seal kit for them, seemed easy enough so I set about painting them. With the cold weather at the time the paint didn't set properly and I wasnt happy with the prep work, wire brush on a drill is okay for some things but these really needed plasted. So dismantled them again, plugged up the holes and got them blasted.

Having paid to get them blasted I wasn't taking the chance of the paint not setting again due to cold, so with Paula on a night out it was time to turn the front hallway into my spray booth!

Posted Image

I then decided after having put so much effort into them to get new pistons, the old ones were abit pitted and since this project is meant to be about doing things right and not cutting corners I took the pludge and ordered the pistons. With those arrived I reassembled them and have to say I'm delighted with the end results.

Posted Image

Posted Image

Now with the calipers complete I could go ahead and order my rear brake caliper brakets. I've gone for the 253mm rear setup which uses discs from a scorpio estate. After knocking out the half shafts and fitting the braket/pads and discs this is the end result.

Posted Image

Posted Image

So one axle ready to fit onto the car. I've had some other bits powder coated too, steering rack rubbed down and painted so I'm very very close to getting all the bits onto the car and having myself a rolling shell! ;D
Posted Image

#2 Naylor2006

Naylor2006
  • Gender:Male
  • Location:Exeter
  • Drives:2.0 Zetec Escort 3dr

Posted 12 July 2012 - 05:49 PM

Some top work here mate, love to see these old ones restored.

What engine is that going in? 24v Cossie from?

#3 Yule

Yule
  • Gender:Male
  • Location:Llanwrtyd Wells, Powys
  • Drives:Juice green mk6 escort cabby, Audi a3 black edition, Peugeot 406 estate taxi.

Posted 12 July 2012 - 06:28 PM

More than likely granada scorpio lump, capri was 1st car i EVER got behind the wheel of, lol. Good luck with the build.
Posted Image

#4 Ahmotorsport

Ahmotorsport
  • Gender:Male
  • Location:Eastbourne
  • Drives:Blue Thunder

Posted 12 July 2012 - 07:01 PM

Nice project matey!

Visit AHM
Follow us on Facebook

Cossies, making Supercar owners look like cnuts, since 1986.

All views and opinions expressed on this Forum are that of the writer, not necessarily that of AHM.

"Every year i drive round Goodwood and each time i find my right leg gets shorter." - Stirling Moss.

Click To Visit Project Pimp.


#5 Hezz

Hezz
  • Drives:Escort GTI + Focus ST170

Posted 12 July 2012 - 07:45 PM

cool project :cheers: i esp like brookland capris :thumb: what colour is yours going? hope its not staying burgundy!! :P

#6 scottybo

scottybo
  • Gender:Male
  • Location:bournemouth
  • Drives:2.0l ford escort finnesse. Bmw 318i 2.0l se touring. Mk3 mondeo 2.2l ST tdci

Posted 12 July 2012 - 08:47 PM

actually a cosworth granada was also the first car i ever drove, well it was about 18 years ago, i sat on my nans lap and turned the wheel while she did everything else lol

capri...................yes
Posted Image



Ever noticed that putting "anal" in front of some ford model names makes them sound funny? Fiesta, Probe, Ranger. Explorer, Maverick etc... lol

#7 meekstaaa

meekstaaa
  • Gender:Male
  • Drives:Citroen C4 VTS

Posted 12 July 2012 - 08:57 PM

Love it! Knew everyone else would too. I take my hat off to you mate for taking that on. I'm looking forward to seeing this progress :)

Posted Image
Proudly pushing in front of people who dare to leave the smallest amount of space since 2002.
Now doing it in a Wicked Red Citroen C4 VTS 180.


#8 tomsy

tomsy
  • Gender:Male
  • Location:gilfach goch s.wales
  • Drives:very nice 3dr gti

Posted 12 July 2012 - 09:51 PM

My second car was a mk 1 facelift capri owned 2 others as well so got a bit of a soft spot 4 these cars. Really looking forward to your updates on this project good luck :thumb:
Posted Image
AN ESCORT IS FOR LIFE NOT JUST YOUR 1ST CAR

#9 sidrick

sidrick
  • Gender:Not Telling

Posted 13 July 2012 - 07:58 AM

This gonna be goooood.

#10 stuey650

stuey650
  • Gender:Male
  • Location:Aberdeen, Scotland
  • Drives:Porsche 944 - Weekend Toy, Octavia - Daily Runner, Capri - Long term Project

Posted 13 July 2012 - 11:50 AM

Cheers for all the comments, just don't expect any lightening fast pace on it, thats 7 months worth of updates above although I do hope to get stuck into it abit more over the winter, ideally have it ready for paint for spring.

Some top work here mate, love to see these old ones restored.

What engine is that going in? 24v Cossie from?

As others have guessed its a 24v from a Granada Scorpio, this is the BOA version, i.e the earlier one. Its slightly less power that the BOB from the frogeyed scorpio's but its easier to wire being pre pats.

cool project :cheers: i esp like brookland capris :thumb: what colour is yours going? hope its not staying burgundy!! :P

Brookie Capri's are boring, they all look exactly the same! I'm not 100% set on colour yet, so open to suggestions. I'd like a Ford colour thats not been done on a Capri before, therefore I'm thinking Melina Blue, the colour my puma was. Its a nice colour when polished up and unlike Imperial Blue hasn't been done to death. However like I say, if anyone has any suggestions fire them my way.
Posted Image

#11 sidrick

sidrick
  • Gender:Not Telling

Posted 13 July 2012 - 01:27 PM

How does the Granada lump compare to the 2.8 Capri engines (Cologne was it?) in terms of weight?

#12 stuey650

stuey650
  • Gender:Male
  • Location:Aberdeen, Scotland
  • Drives:Porsche 944 - Weekend Toy, Octavia - Daily Runner, Capri - Long term Project

Posted 13 July 2012 - 02:08 PM

yeah cologne, much the same I think, the 2.9 does have alloy heads but I wouldn't imagine the difference will be all that much.
Posted Image

#13 stuey650

stuey650
  • Gender:Male
  • Location:Aberdeen, Scotland
  • Drives:Porsche 944 - Weekend Toy, Octavia - Daily Runner, Capri - Long term Project

Posted 25 October 2013 - 10:21 PM

Right over due an update on this, almost two years since I bought it and not done nearly as much as I first planned. What's the excuse, well some building work was required so I have a workshop to restore it.

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

So as you can see although the car hadn't made much progress I've not been sitting around. With the garage eventually complete (about 15months!) it was time to move the car from where I was storing it to my house.

Posted Image

Finally in its home until it's time for paint

Posted Image


Few more car updates to follow next week :pancake:
Posted Image

#14 scottybo

scottybo
  • Gender:Male
  • Location:bournemouth
  • Drives:2.0l ford escort finnesse. Bmw 318i 2.0l se touring. Mk3 mondeo 2.2l ST tdci

Posted 25 October 2013 - 10:47 PM

nice work with the garage man!
Posted Image



Ever noticed that putting "anal" in front of some ford model names makes them sound funny? Fiesta, Probe, Ranger. Explorer, Maverick etc... lol

#15 sidrick

sidrick
  • Gender:Not Telling

Posted 26 October 2013 - 09:49 AM

Yay :D
