[mr matty]

has any one dun this and used the 5 wire relay ?? i sort of get that u dont use the extra gray one ! the purple one with the orange stripe is the same and erth s the same !but the other 2 wires r diferent colour to wot the guide tels you !

[JC]

Ask MrMetallica, he know's his stuff on these!

[mr matty]

pmd him !!!

[mrmetallica]

pmd him !!!

not recvd pm m8



any way on the mondy relays
no1 is earth
n02 live
no 3-4 join together and connect to switch side.
n05 goes to motor side
any probs let me know

[MCCORNY11]

ive got one if you want it?

[mr matty]

think i get it now !! just cud do wi noin wots wot on the car !!

big thans to mrmetallica

[mr matty]

hey ppl. i have dun wot i think is right !!






any one no if im on the right track ??

and if so wot next ??

guys !

[Orionzetec]

I used 3 extra relays (car already had one) so got one touch up & down on both front windows.

[MIKE W]

If im wanting one touch up and down on both sides, how many relays do i need, 4? and what cars can i get these from and where abouts are they located?

Also is there a decent guide on doing this, preferably one for dummies as i have no fcuking clue where to start lol

Thank you

[MC_Bob]

No idea if it helps, but cabriolets have one touch on all four windows, so might be worth getting bits from one of those? No idea if itd be easier or not!

[mr matty]

thanksfor the help guys !

i have them all in and wired up now all work fine !!

[JC]

If im wanting one touch up and down on both sides, how many relays do i need, 4? and what cars can i get these from and where abouts are they located?

Also is there a decent guide on doing this, preferably one for dummies as i have no fcuking clue where to start lol

Thank you

Mike you need 4, for up down both sides

Mondeo relay is in the driver's side door, middle left hand side behind the door card, look for the little auto switch on the window switch before wasting time to make sure there is one there

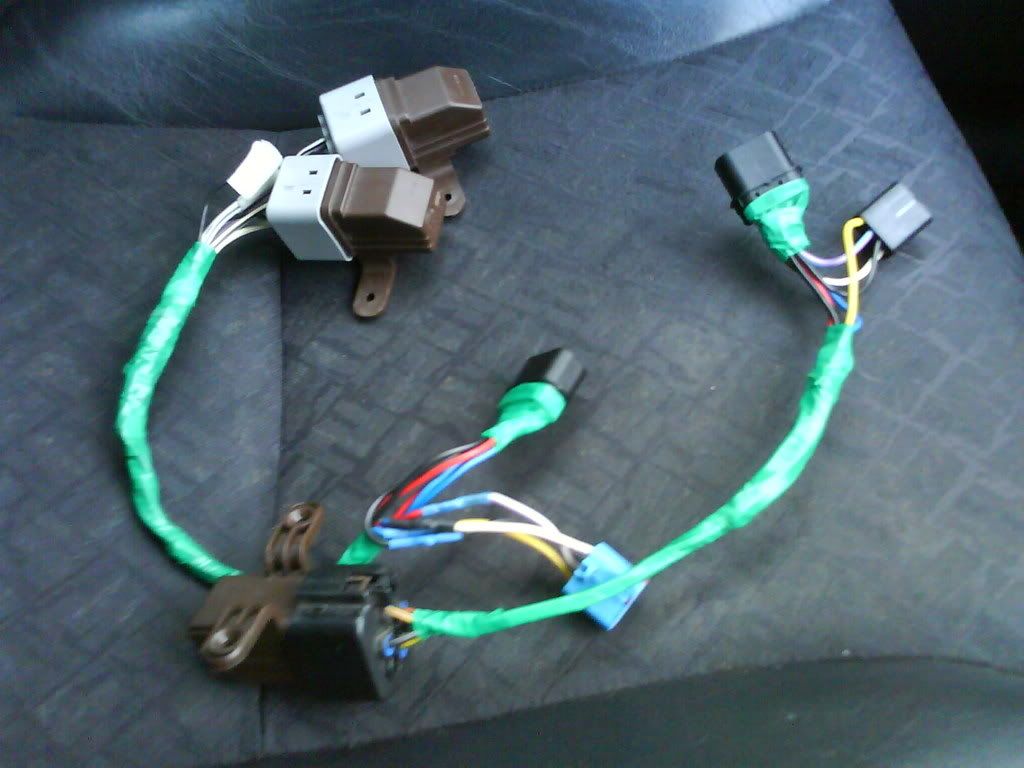

there is a guide some where, or send Mrmetallica money for a nice neat plug and play loom like this:



escorts, ghia's, RS2000, had them in the centre consol

[MIKE W]

Cheers John

What Mondeo are they in?

That set made by MrMetallica, would i just plug that into my switch and im all go? And how much would i be paying for such thing?

[MCCORNY11]

yip just plug and play! already done the same for my car like the pics. got one double finished just need another relay to finish my second and will pick one up at the weekend! and these will be up for sale

[EssexMikeSi]

I don't think i ever had to take my centre console apart on my ghia cabriolet i had so never saw all the extra relays etc but that pic looks good there that john posted up. How much are they being sold for? Mind u, i gotta sort out my window mechanism first so the window actually goes up and down lmao!!!
